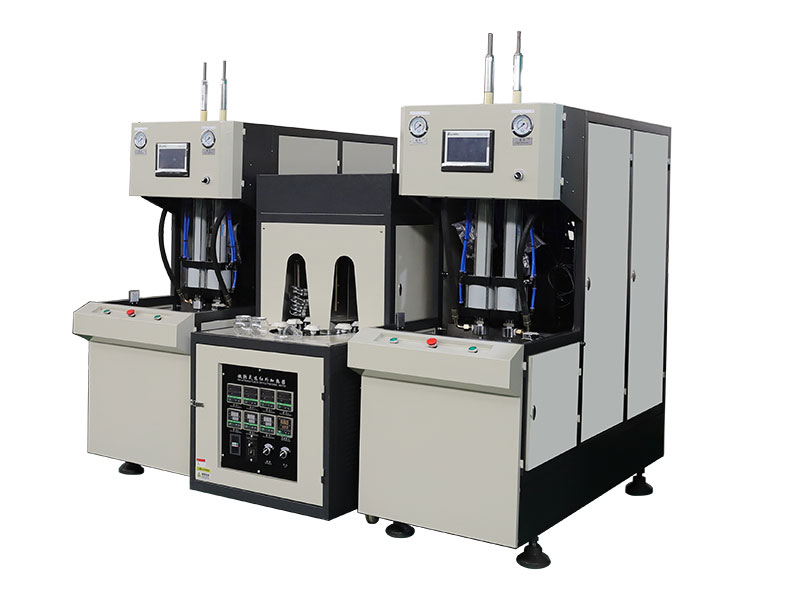

LS-B3L-4

LS-B3L4cavity semi automatic PET bottlemaking machine can blow water bottles, juice bottles, special-shaped bottles, beverage bottles, etc. in various shapes from 5ML to 3L.

One-year warranty and lifetime technical support.

Optional brand configuration.

Product details More photos

Machine Parts

1.PLC& touch screen:THINGET、MITSUBISHI、SIEMENS

2.Pneumatic part: YONGCHENG、AIRTAC

3.Valve:STNC、QUANJIA、PARKER、FESTO

4.Switch: DELIXI、SCHNEIDER

5.All other accessories are from famous Chinese brands

6.Optional accessory brands


Machine Features

1.The machine has high stability, low noise and simple operation, requiring only one person to operate

2.Adopting double crank mold locking structure with high -hardness cast iron,the clamping force is large and durable

3.Infrared rotary oven to heat the preform ,independent temperature control and adjustable lamp for heating evenly and efficiently

4.Small size, low energy consumption and modular design makes maintenance and mold replacement easy

5.The air circuit is divided into two parts: action and blowing, which can provide stable high pressure blowing of thick-walled bottles

6.Micro PLC controller is used to ensure stable and accurate machine operation

7.Suitable for flexible production of various bottle shapes,wide application range,economical investment


Machine parameters

Model NO.

LS-B20L

LS-B1L-4

LS-B3L

1 oven 1 blower

LS-B3L

1 oven 2 blower

LS-B5L

LS-B5L-2

LS-B10L

LS-PP

Theoretical Output

120pcs/hr

2300pcs/hr

1000pcs/hr

1800pcs/hr

400pcs/hr

700pcs/hr

352pcs/hr

1000pcs/hr

Max.Bottle Volume

22L

1.5L

3L

3L

7L

7L

12L

2L

Max. Neck Diameter

120mm

40mm

50mm

50mm

120mm

100mm

120mm

100mm

Max.Bottle Diameter

330mm

100mm

100mm

100mm

260mm

260mm

280mm

260mm

Max.Bottle Height

600mm

340mm

340mm

340mm

430mm

430mm

430mm

430mm

Mold Opening stroke

360mm

130mm

150mm

150mm

320mm

320mm

350mm

320mm

Mold thickness

450mm

230mm-430mm

240mm-430mm

240mm-430mm

260-430mm

260-400mm

260-400mm

260mm-430mm

Number Of Cavity

1 cavity

4 cavity

2 cavity

4 cavity

1 cavity

2 cavity

1 cavity

1-2 cavity

Use Power

18kw

15kw

8kw

13kw

8kw

15kw

12kw

15kw

Motion Pressure

1.0mpa

1.0mpa

1.0mpa

1.0mpa

1.0mpa

1.0mpa

1.0mpa

1.0mpa

Blow Pressure

≤3.5mpa

≤3.0mpa

≤3.0mpa

≤3.0mpa

≤3.0mpa

≤3.0mpa

≤3.0mpa

≤3.0mpa

Machine Size

233x75x185cm

265x70x160cm

35x40x80cm

165x70x150cm

160x100x130cm

150x220x240cm

Blower: 167x65x170cm

Oven:  175x73x154cm

190x70x170cm

170x70x150cm

200x90x170cm

220x70x150cm

200x65x180cm

220x65x145cm

145x65x170cm

420x65x145cm

Weight

1.8T

1.4T

1.0T

1.5T

1.2T

1.4T

1.5T

1.8T

Actual output depends on bottle shape and preform quality.

Above technical parameters are subject to continual update,please take the real machine as the base.
