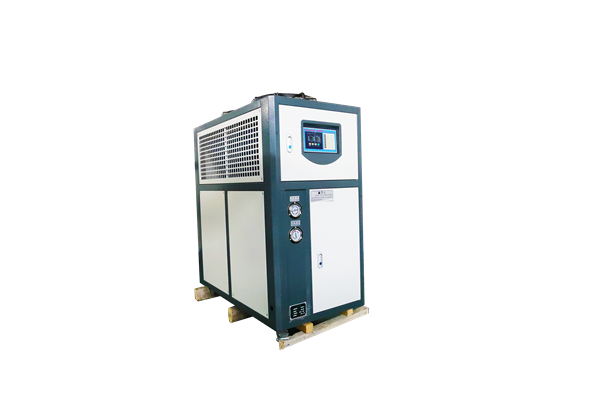

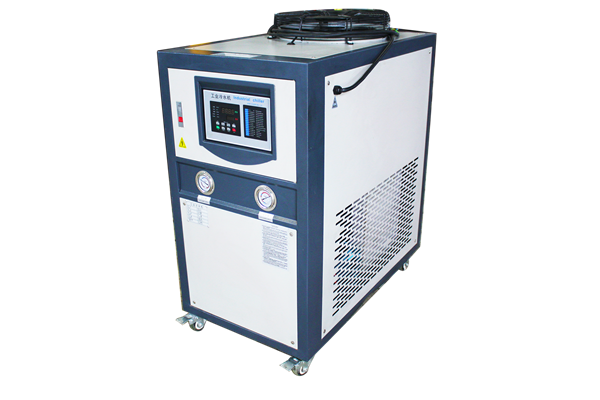

The chillers provided by LONES Machinery are designed and manufactured in strict accordance with relevant national standards, and are characterized by light design, beautiful appearance, convenient maintenance and complete supporting functions. All equipment is guaranteed free of charge within one year and maintained for life.
a.Manufactured with famous brand compressors and electronic control components, the unit is equipped with leakage protection, overload protection, overpressure, reverse phase protection, abnormal refrigerant protection, compressor overtemperature protection, perfect combination.
b.The anti-corrosion fins of the air-cooled heat exchanger are manufactured by the second-time flanging fin machine expansion process, no need to install additional cooling pumps and water towers.
c.Reliableworking, easy cleaning, strong cooling capacity, low noise, long life, and simple operation convenient. Can be tailored according to the special requirements of users.
|
Model |
|
2HP |
3HP |
5HP |
6HP |
8HP |
10HP |
|
Power supply |
|
220V/1phase |
380V/3phase （can custom） |
||||
|
Cooling capacity |
Kcal/h |
5142 |
7713 |
12855 |
12426 |
20568 |
25710 |
|
kw |
6 |
9 |
15 |
18 |
24 |
30 |
|
|
Number of compressors |
|
1 |
1 |
1 |
1 |
2 |
2 |
|
Compressor power |
HP |
2 |
3 |
5 |
6 |
8 |
10 |
|
Pump flow |
L/min |
0.5 |
0.5 |
0.5 |
0.5 |
1 |
1 |
|
Tank capacity |
|
39 |
67 |
67 |
67 |
145 |
145 |
|
Refrigerant |
|
R22 (R407C ,R410A,R134A,R404A optional) |
|||||
|
Evaporator form |
|
Water tank coil type |
|||||
|
Condenser form |
|
Air-cooled finned high-efficiency heat exchanger |
|||||
|
Number of fans |
|
1 |
2 |
2 |
2 |
2 |
2 |
|
Single fan power |
KW |
0.15 |
0.15 |
0.19 |
0.19 |
0.24 |
0.24 |
|
Sized mm |
|
800*520*860 |
1130*530*1240 |
1250*630*1240 |
1250*630*1240 |
1550*735*1400 |
1550*735*1400 |
|
Weight kg |
|
92 |
130 |
170 |
190 |
350 |
450 |
