Two-level silencer, low noise.
Integrated pipeline design, compact machine.
Pressure sensor control, accurate exhaust pressure, easy adjustment, pressure difference can be less than 0.5KG/CM2.
Each stage is equipped with a pressure gauge safety valve, and the last stage is equipped with an ultra-high pressure alarm to make the compressor system safe and reliable.
High-pressure automatic vent valve overcomes the shortcomings of high-pressure solenoid valve failures.
The cylinder head separates the intake cavity from the exhaust cavity, which reduces the intake air temperature and improves the exhaust efficie.
|
|
Model |
Discharge air M3/min |
Working pressureMpa |
Power KW |
Rotatespeed R.P.M |
Size L*W*HMM |
Weight KG |
|
High pressure air compressor |
1.2/30 |
1.2 |
3.O |
11kw |
620 |
1475*730*910 |
430 |
|

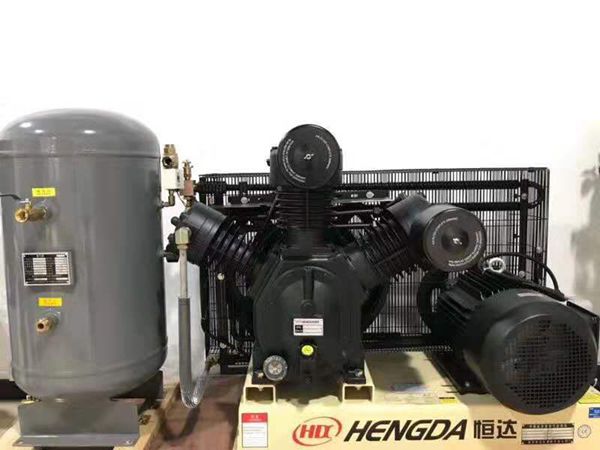

1.2/30 （with air tank） |
1.2 |
3.O |
11kw |
620 |
1920*795*1135 |
530 |
|
|
1.2/30 |
1.2 |
3.O |
15kw |
760 |
1475*730*910 |
450 |
|
|
1.2/30 （with air tank） |
1.2 |
3.O |
15kw |
760 |
1920*795*1135 |
550 |
|
|
1.6/30 |
1.6 |
3.O |
18.5kw |
790 |
1140*735*1450 |
560 |
|
|
2.0/30 |
2.0 |
3.O |
22kw |
735 |
1150*860*1600 |
615 |
|
|
2.0/30 |
2.0 |
3.O |
2*11kw |
620 |
1930*1610*1100 |
1050 |
|
|
2.4/30 |
2.4 |
3.O |
15kw*2 |
760 |
1930*1610*1100 |
1090 |
|
|
3.2/30 |
3.2 |
3.O |
18.5kw*2 |
790 |
1880*1180*1450 |
1200 |
|
|
4.0/30 |
4.0 |
3.O |
22kw*2 |
735 |
3300*980*1750 |
1300 |
|
|
3.6/30 |
3.6 |
3.O |
15kw*3 |
760 |
2250*1690*1850 |
1580 |
|
|
4.8/30 |
4.8 |
3.O |
18.5kw*3 |
790 |
2520*1920*1540 |
2400 |
|
|
6.0/30 |
6.0 |
3.O |
22kw*3 |
735 |
4450*870*1560 |
1900 |
